Creating a Scan Scope

  • Updated

CloudSphere CAM discovers devices that exist in your IT universe by executing Scan Jobs. The Scan jobs scan endpoints within a specified network boundary (Subnets, IP Ranges, IPs), which is defined using Scan Scope(s).

While configuring a Scan Job we first need to identify and define Scan Scope(s), and eventually add them to it.

A Scan Scope provides a list of target IP addresses or hostnames that we want to be scanned while we execute a Scan Job. It also contains information about the Scope Type (target environment - Private Network, Amazon EC2, Azure, Google Cloud Platform).

It can be defined using the following:

  • List  - specified as a list of IP addresses or hostnames
  • IP Range - specified by a start and end IP address
  • IP Subnet - specified by a network address and subnet mask

Reference: Step 1 - Identify Network Segments for Discovery

Reference: Scanning Best Practices

Creating a new Scan Scope

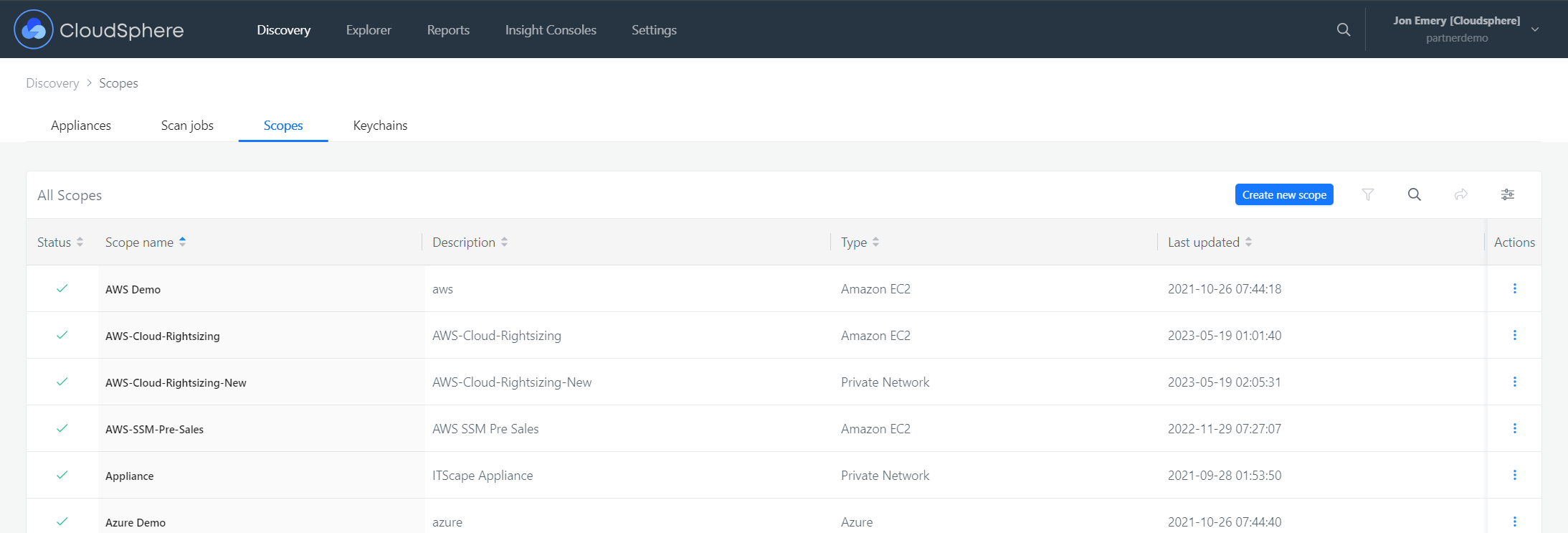

  • Click the Scopes menu
  • On the All Scope Page, Click the "+" button

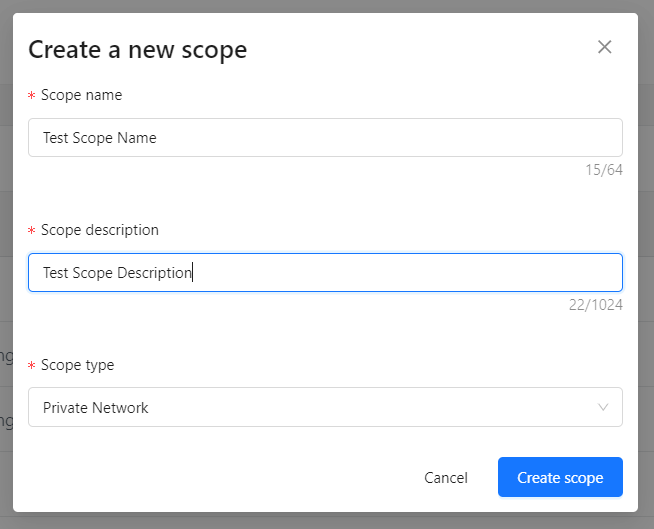

  • In the “Create a new scope” dialog,
  • Enter the scope name
  • Give it a description
  • Select the scope type (Explained Below)
  • Click Continue


Scope Type: Depending on if you are trying to scan an on-prem environment or a public cloud environment, there is a different approach to setting the scan scope. What would you like to do?

  • Private Network
  • Amazon EC2
  • Azure
  • Google Cloud Platform

Note: Optionally, you can also create a new scan scope while creating a new scan job.

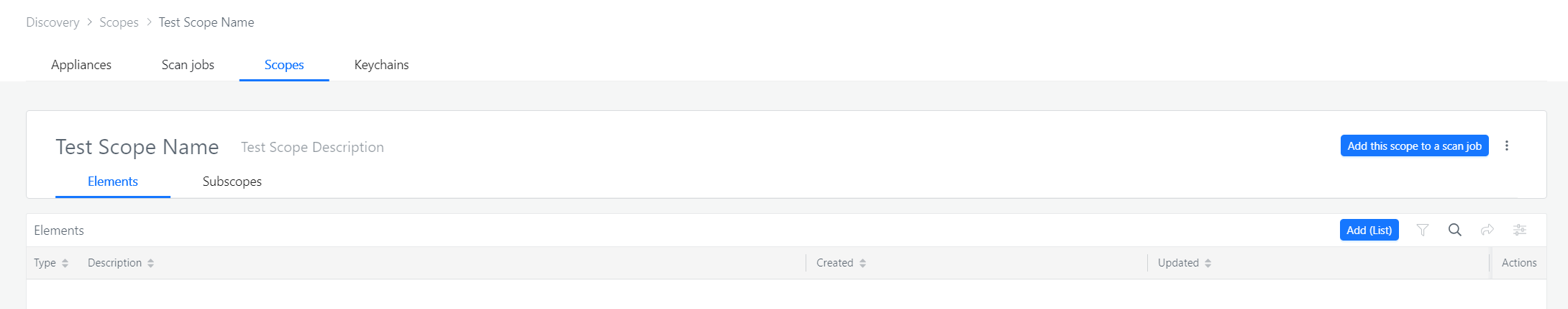

Adding targets to a scope

Once the scope is created with the scope type, you can start adding the targets to a scope. You can add a specific list, a range, or a subnet as a target.


You can add one or more lists and/or ranges of IPs to one scope.

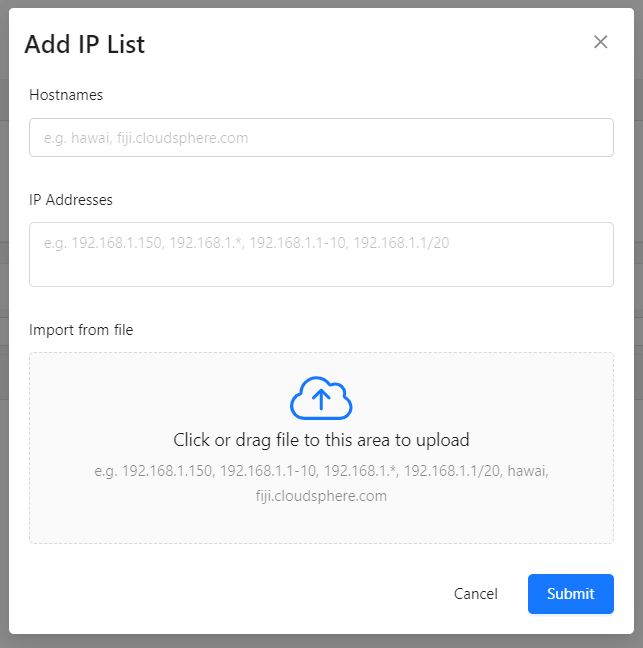

  • IP Listss4.png

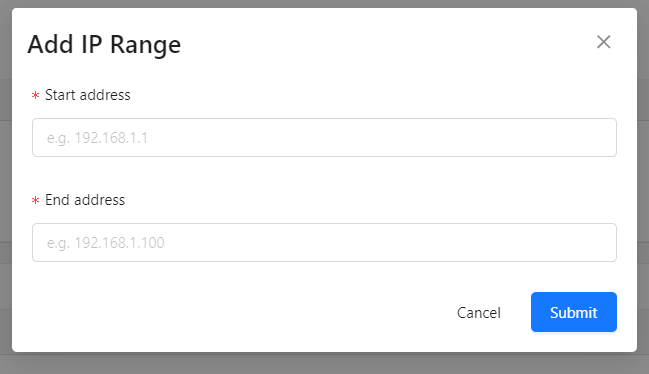

  • IP Rangess5.png

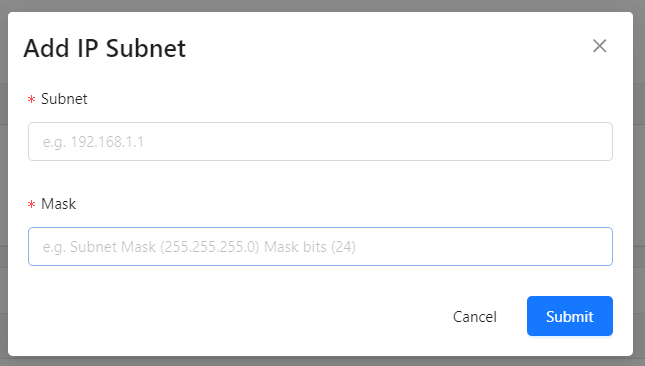

  • IP Subnetss6.png

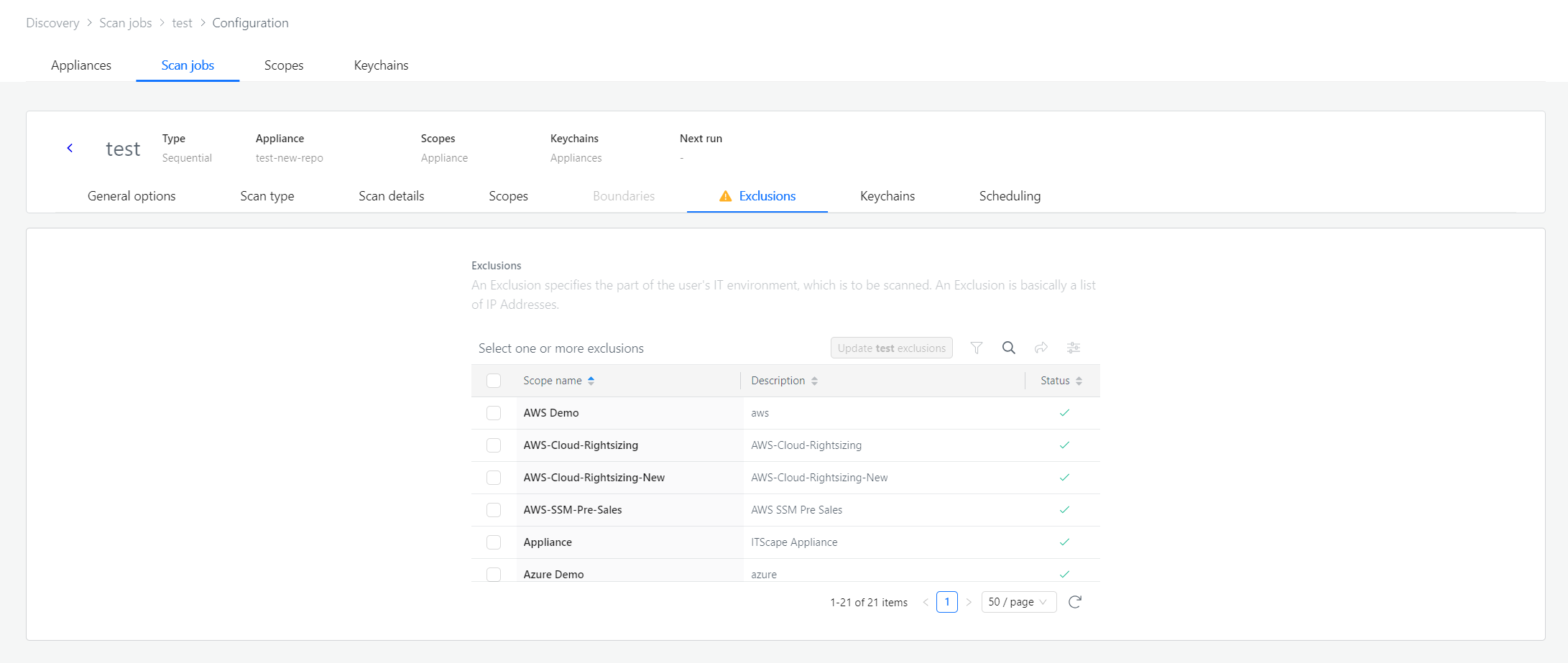

Adding Exclusions

An exclusion is a scope (Target IPs) that you want to exclude or avoid scanning. By using this step, you can add a list of target IPs that you would like to avoid scanning. You can either choose an existing exclusion from the list which you have already created or create a new exclusion similar to creating a new scope. Exclusions are particularly useful when you are scanning a subnet of IPs or when the scan type is Application or Neighborhood.ss7.png
