Appliance Install
-

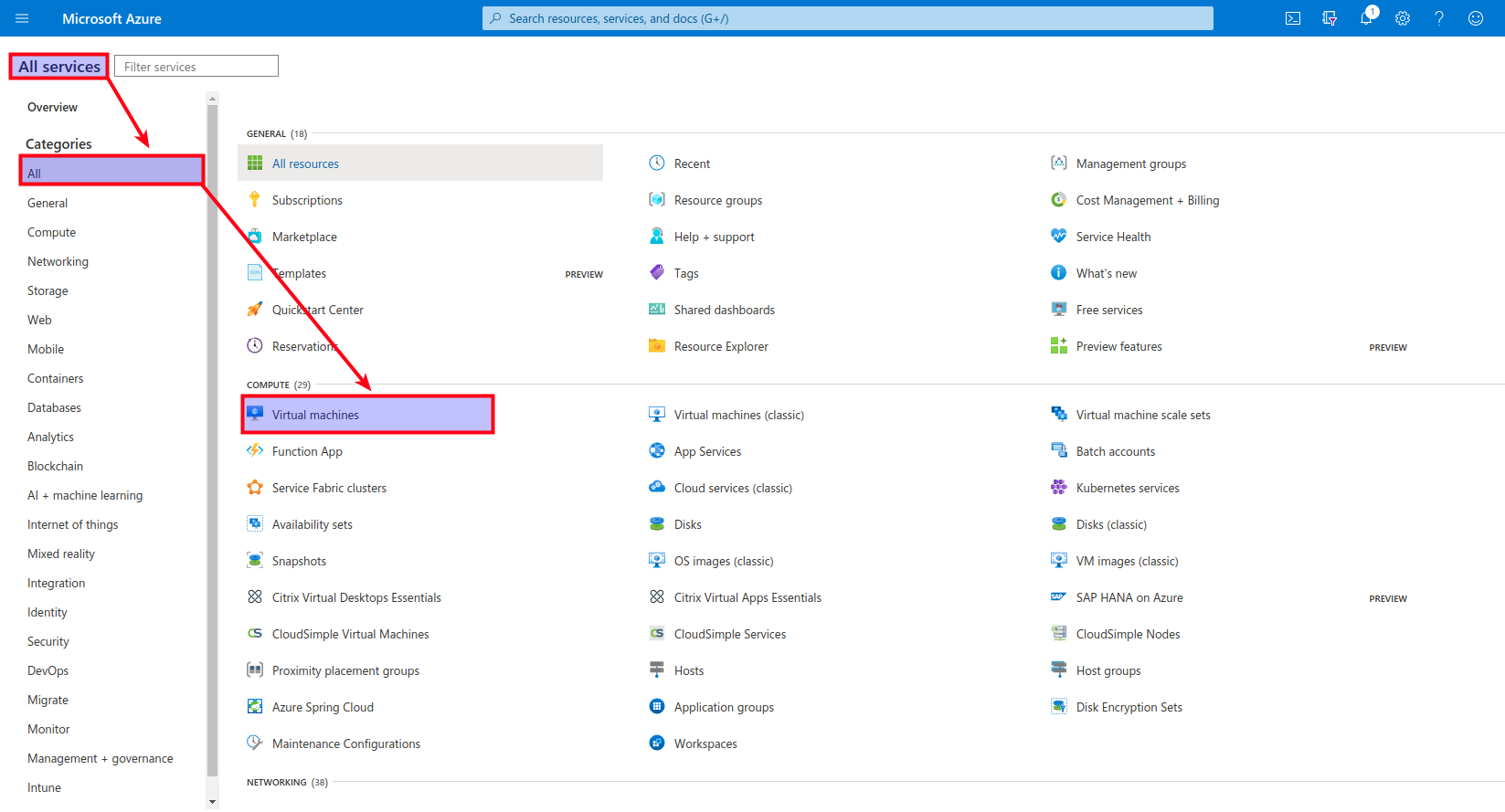

In your Azure portal, select All Services > Virtual machines
-

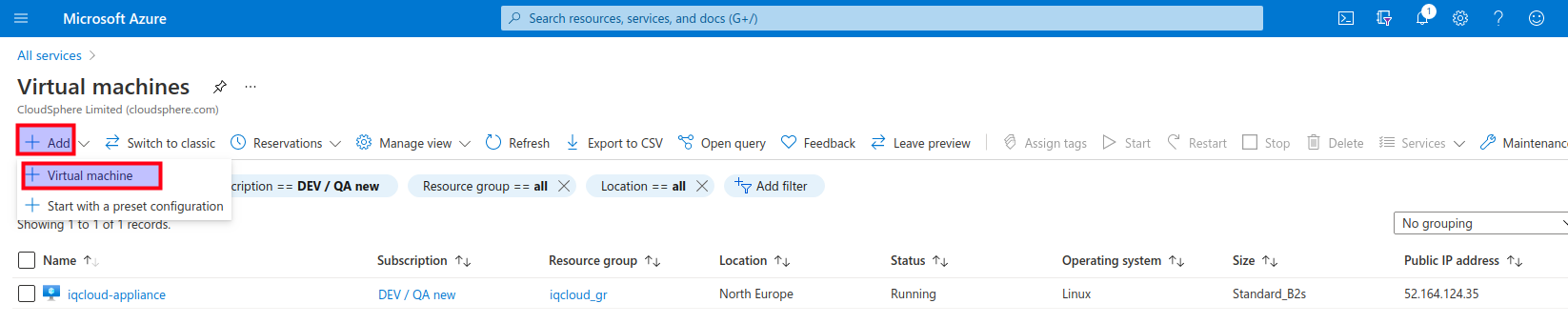

Click on Add and then Virtual Machine to begin a new virtual machine creation screen.
-

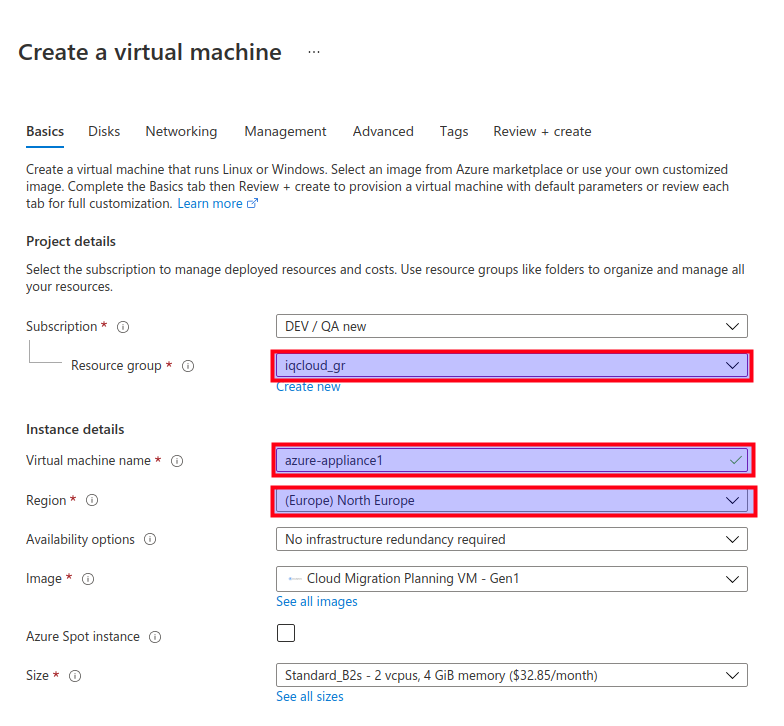

Specify the Resource group, the Virtual machine name and the Region.
-

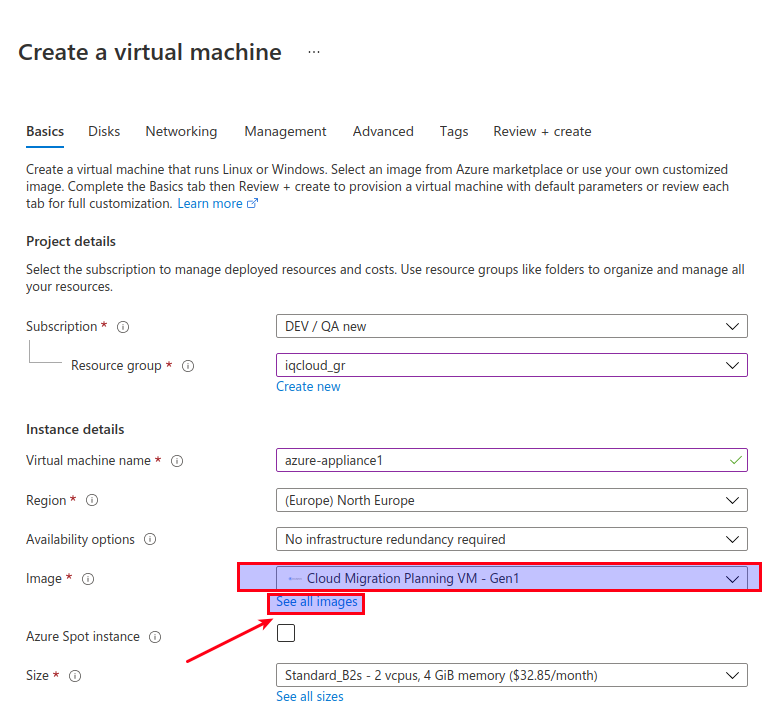

Click on “See all images” to select the CloudSphere image.
-

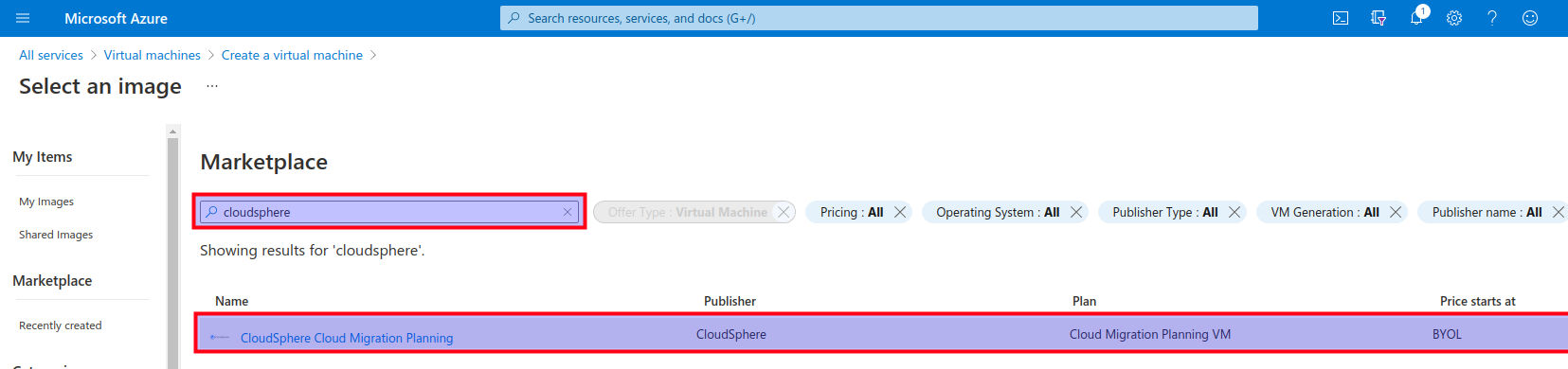

Type "CloudSphere" on the search field to list the CloudSphere image
-
Select the Cloud Migration Planning Image.
-
Select VM size; by default it will select the recommended size
NOTE: You need to specify a minimum of 2 cores and 4GB ram for the appliance corresponding to the B2s VM size.
-

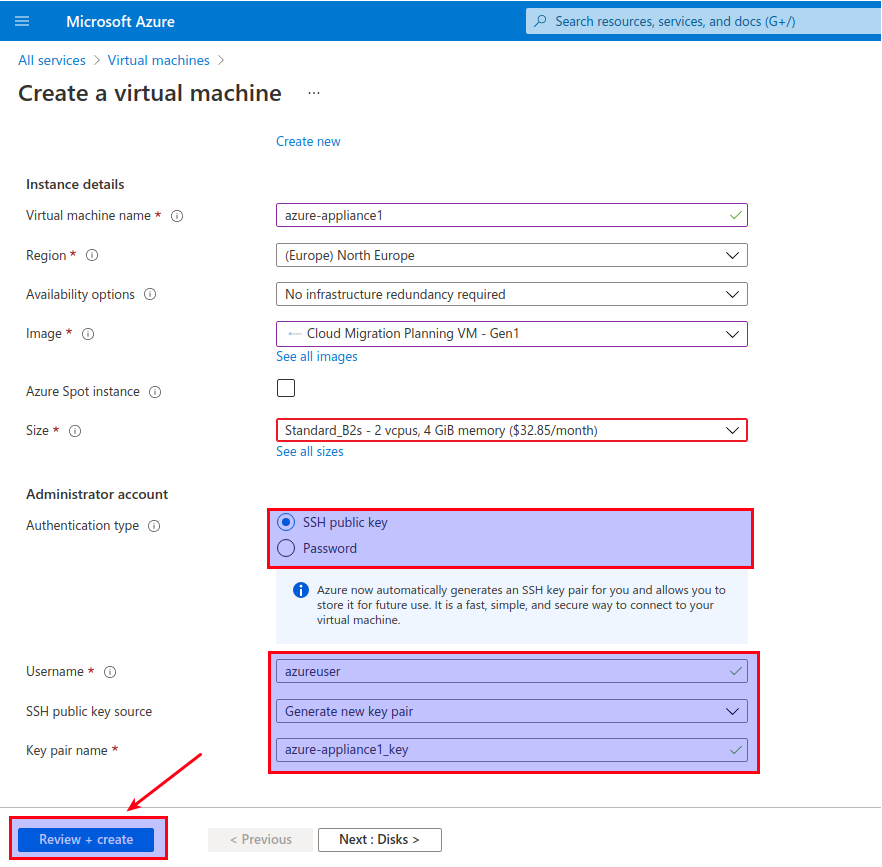

Specify a username and password for SSH access (or use an SSH key) and enable remote SSH access.
-
After reviewing finally click the Create button and the process is complete. Once the appliance has booted for the first time, you can determine the private IP address from Azure.
At this point, your appliance is running and you should be able to log into the web interface with the private IP address as identified in the Appliance Configuration section. Depending on your azure configuration you should already have a VPN or other method of connecting to this address/port.
You are now ready to configure your Virtual Appliance. Please proceed to Configure the Virtual Appliance.
